TRAINING SCHEDULE
9:00 - 10:00 am - Redis
9:45 - 11:15 am - Redis as a Primary Data Store
11:25 - 12:55 pm - Redis + K8s

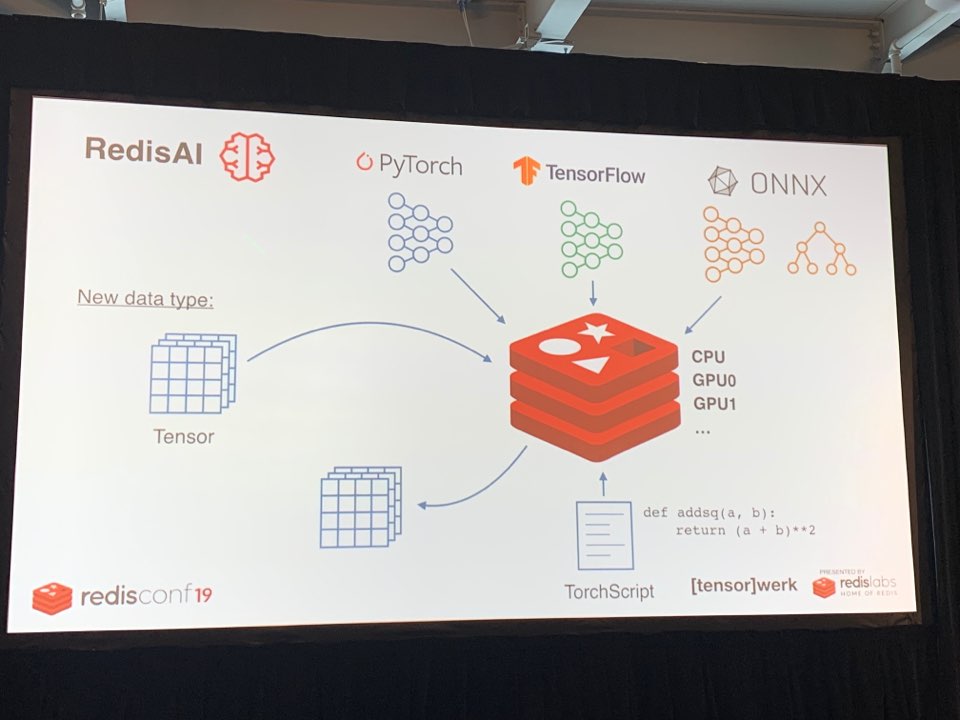

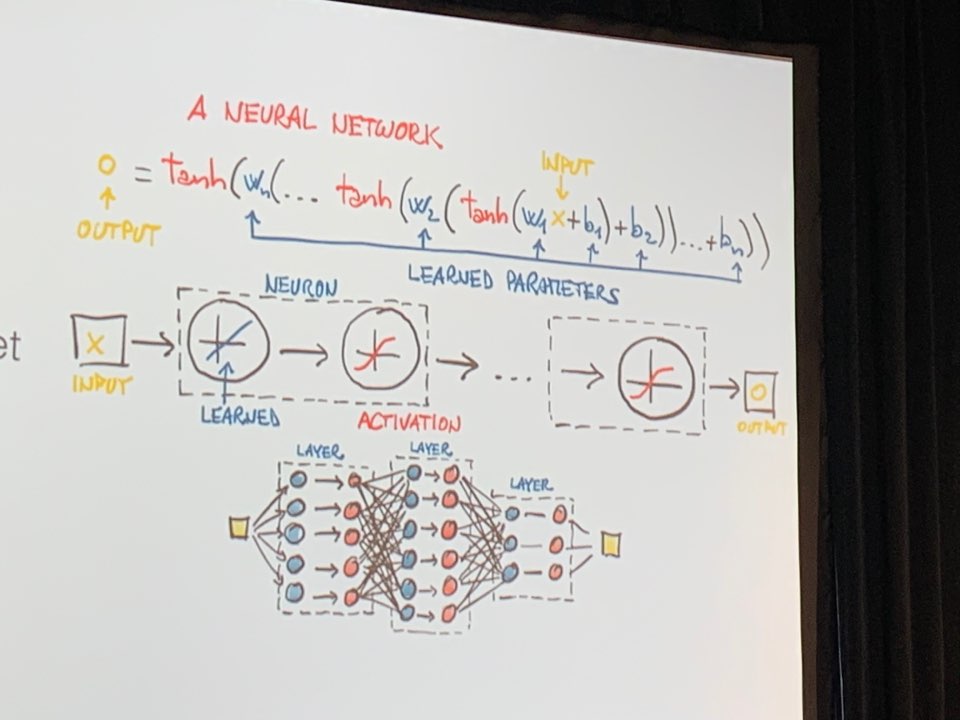

1:55 pm - 3:25 pm - Deep Learning with Redis
3:35 pm - 5:05 pm - Streaming Architectures
EVENT INFORMATION
Redisconf 2019
Training Day: April 1, 2019
Conference Days: April 2 - 3, 2019
VENUE
Pier 27
The EmbarcaderoSan Francisco, CA 94111
PRESENTED BY
Redis Labs, Inc
[email protected]
0900..1000 Redis Introduction

- Salvatore Sanfilippo https://github.com/antirez
 - RDB, AOF -> files, persistent

redis-cli
> ping
pong
telnet localhost 6379
> ping
+PONG
> SET mykey somevalue
> GET mykey
"somevalue"
- key1.2.3 -> map to complex data structure
 - flat key-value space
 - value are more complex: list, hash, …

> set myobject:1 "ksdfsd dsf sdf sdfsdf sdf "
> get myobject:1
1) hash
redis hmset: key-value type data
> hmset myobejct:100 user antirez id 1234 age 42
> hgetall myobject:100
1) "user"
2) "antirez"
3) "id"
4) '1234"
5) "age"
6) "42"
> hget myobject:100 id
"1234"
> hget myobject:100 user
"antirez"
2) list
> rpush mylist 1
> rpush mylist 2
> rpush mylist 34 5 6 7
> lrange mylist 0 -1
1) "1"
2) "2"
...
7) "7"
> lpush mylist a b c
> lrange mylist 0 -1
1) "c"
2) "b"
3) "a"
4) "1"
...
11) "7"
> lpop mylist
"c"
> lpop mylist
"b"
> rpop mylist
"7"
> rpop mylist
"6"
> lrange mylist 0 -1
1) "1"
2) "2"
3) "3"
4) "4"
> RPOPLPUSH mylist mylist
"4"
> lrange mylist 0 -1
1) "4"
2) "1"
3) "2"
4) "3"
> RPOPLPUSH mylist mylist
"3"
> lrange mylist 0 -1
1) "3"
2) "4"
3) "1"
4) "2"
- rpoplpush is really good

> set object:1234 foo
> set object:1234 bar
> get object:1234
"bar"
- to retain the history

> del object:1234
> lpush object:1234 foo
> lpush object:1234 bar
> larnge object:1234 0 0
"bar"
> lrange object:1234 0 -1 # to see the history
1) "bar"
2) "foo"
> ltrim object:1234 0 1
> lrange object:1234 0 -1
1) "foo"
> lpush A username:239:salvatore
> lpush B username:239:salvatore
> lpush A username:03232:anna
> lrange A 0 -1
1) username:093:anna
2) username:239:salvatore
> lrange B 0 -1
1) "username:230:salvatore"
3) sorted set
- good for leader board

> zadd myzset 1.2 A 3.2 B 5 C  # element-value
> zrange myzset 0 -1
1) "A"
2) "B"
3) "C"
> zadd myzset 0.5 C
> zrange myzset 0 -1
1) "C"
2) "A"
3) "B"
> zrange myzset 0 -1 WITHSCORES
1) "C"
2) "0.5"
3) "A"
4) "1.2"
5) "B"
6) "3.2"
> del myzset
> zadd myzset 100 antirez 5 trent 2000 anna
> zrange myset 0 -1 WITHSCOPE
1) "trent"
2) "5"
3) "antirez"
4) "100"
5) "anna"
6) "2000"
> ZRANK myzset anna
2
> ZRANK myzset trent
0
> ZRANK myzset antirez
1
- pop the element

> zpopmin myzset
1) "trent"
2) "5"
> zpopmin myzset
1) "antirez"
2) "100"
> zpopmin myzset
1) "anna"
2) "2000"
> zpopmin myzset
(nil)
1000..1115 Redis as a Primary Data Store
- Kyle Davis
 - appsembler -> using their platform for test

Overview & Introduction
- redis can be your primary database not just as a cache
 - reids is your single source of truth
 - redis is your operational database
 - database/datastore for disaster recovery
 - this requires:
- proper configuration of redis
 - suitable data
 - proper data structuring

 - Single Source of Truth
- you write and read from redis directly
 - there is no database that defines what is true to your application
 - you may have other methods to define truth for archival or non-working set
- data shouldn’t be operated on from more than one place

 - Advantages:
- Speed
 - Low application complexity
 - Low architectural complexity

 - Disadvantages:
- Mistrust
 - Data is not always suitable



Transaction
- ACID transaction
- Atomicity Consistency Isonation Durability

 - redis is single threaded
 - Signle Client - Execution flow
 - two client - execution flow
 - multiple command transaction
- MULTI to start transaction block
 - EXEC to close transaction block
 - commands are queued until exec
 - all commands or no commands are applied
 - transaction


> MULTI
> sadd site:visitors 125
> incr site:raw-count
> hset sessions:124 userid salvatore ip 127.0.0.1
> EXEC
- discard example

> DISCARD
- transa ction with errors - syntatic error

> EXEC
(error)EXECABORT Transaction discarded because of previous errors.
- transaction with errors - semantic error

> EXEC
- conditional execution/ optimistic concurrency control
- use WATCH, UNWATCH

 - dependent modifications - incorrect version
 - dependent modifications - correct version

python code
tx = r.pipeline()
tx.watch(debitkey) <== **
tx.multi()
tx.hincrbyfloat
tx.execute()
except WatchError: <== **
  # watched 'balance' value had changed
  # so retry
- disk based persistence - options
- RDB = snapshot: store a compact point-in-time copy every 30m, hourly
 - AOF = append only files: write to disk(fsync) every second or every write -tunable

 - RDB Persistence
- Persistence
- fork redis rpocess
 - child process wirtes new RDB file
 - atomic replace old RDB file with new

 - Trigger manually
- SAVE command(synch)
 - BGSAVE(background)


 - Persistence
 - AOF Presisteance
- configuration
- appendonly directly (reids.conf): APPENDONLY YES
 - runtimeL CONFIG SET APPENDONLY YES

 - AOF FILE fsync options
- trace off speed for data security
 - options: none, every second, always

 - BGREWRITE

 - configuration
 - Redis enterprise durability - persistence topologies
- master replica, writing from replica is slow
 - master replica, wrting from master is faster but still slow, tunable

 - Transactions Summary
- no rollbacks
 - rollback- free transcations, different beast from rollback transactions
- atomic
 - isolation, consisteency
 - durability

 - transaction work differently than other databases, archives the same goals
 - single threaded event-loop for serving commands
 - WATCH for optimistic concurrenty control


Data Structuring
- hands on
 - reids is a building block
 - Ordered data
- each row is a hash
 - rows can be accessed by a key
 - hashes manage any type of ordering or index

 - Add an item
- with sorted set and hashes


MULTI
HSET people:1234 first kyle last davis birthyear 1981
ZADD people:by-birthyear 1981 people:1234
EXEC
- MULTI/EXEC clustering trade-off
 - Read an item

HGETALL people:1234
# HGET people:1234
# HMGET people:1234
- LIST items

ZRANGEBYSCORE people:by-birthyear 1980 1990
1) people
...
> HGETALL people:1234
- lua is redis’s built in script language
 - UPDATE item

MULTI
HSET people:1234 birthyear 1982
ZADD people:by-birthyear 1982 people:1234
EXEC
- DELETE item

MULTI
UNLINK people:1234
ZREM people:by-birthyear people:1234
EXEC
Clustering, keys & transactions
- 4 Shard/ Node Cluster
 - MULTI/EXEC
 - something could die during transaction going to different shards
 - how to prevent this
 - Data layout - isolated data
- data assoicated with one company/account/etc
 - operationally, you may not need any non-isolated access

 - Keep all the data together with key “tags” using curly braces

c:{xyz}:people:1234
c:{xyz}:people:by-birthyear
# hash('xyz') = n => will alwyas go to the same shard
- Without MULTI/EXEC and non-isolated data
- trade offs and complexity but still possible
 - non-critical data/application
- always manipulate your data first
- hset/unlink/del/etc

 - then manipulate index
 - your application needs to be able to handle missing data and incorrect indexes
 - possible index cleanup tasks with background SCAN commands

 - always manipulate your data first
 - event pattern
- data changes are written as a series of changes adding to a stream
 - indexes are gneerated


 - Easier with “RediSearch”

# init
FT.CREATE people-index SCHEMA birthyear number last text first text
# add
HSET people:1234 birthyear 1881 last davis first kyle
FT.ADDHASH people-index people:
# update
# add
FT.GET
# LIST
FT.SEARCH people-index "@birthyear:[1980 1990]
# DELETE
FT.DEL
- redis search takes care of the clustering*!
 - you don’t have to worry about it
 - clusering is only availble on enterprise edition

Examples:
- Data suitablitiy / Non-relational data
- can your data be primariliy referenced by a key?
 - Does your data’s structure vary widely?
 - How normalized is your data?
 - Is your data naturally isolated by particular

 - Denormalized Data
- data is stored the way it will be retrived
 - Breaks the rule of repeated data
- lower compelxity


 - Bad example: Higly isolated data
- student record system at a universy
 - One screen that displays
 - highly relational -> don’t build it with redis

 - Good example: Student communication Portal

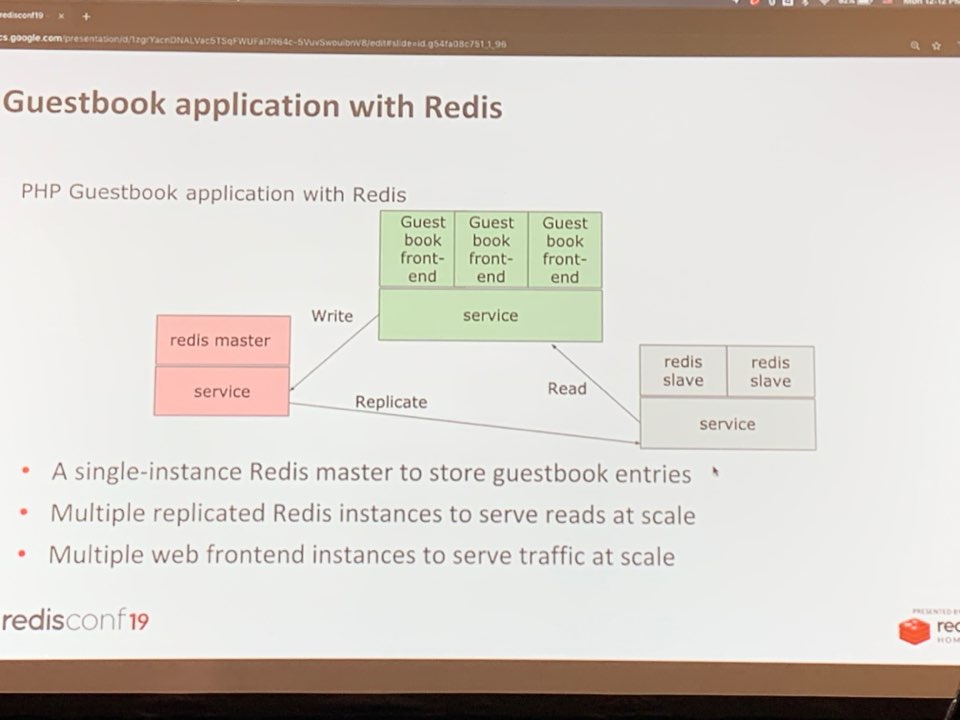

1130..0100 Redis + K8s
- Redisconf2019 google group
- email [email protected] and will add you https://groups.google.com/forum/#!forum/redisconf2019

 - Why?
- Brendan Burns: k8s founder, kubecon 15’ keynote
 - “We’re making reliable, scable, agile distributed systems a CS101 exercise”

 - How?
- Kubernetes speeds up the development process by:
 - making deployments easy
 - automating deployments
 - simplifying updates/upgrades

 - What?
- container orchestration cloud platform
 - https://github.com/kubernetes/kuberneetes
 - CNCF
 - GKE, Redhat openshift, pivotal container service, azure container service

 - Where?
- 54% of fortune 500 companies - business insider 2019, Jan


K8s concepts
- what k8s can do for me? workloads.
- run a workload consisting fo docker containers
 - manage a cluster of many nodes (aka hosts, instances)
 - spread the workload across the nodes intelligently
 - dispatch incoming traffic to the relevant backend (ingress)

 - what k8s can do for me? management
- monitor services and restart them as needed
 - manage scaling up/down services
 - manage deployment of new versions in various ways

 - how does it owrk?
- api/ master nodes/ worker nodes
 - inptu by kubectl/ webui
 - master nodes/ api server, scheduler, controllers, etcd
 - workder nodes: pods, docker, kubelet, kube-proxy


kubectl get pods
kubectl apply -f pod-redis.yaml
kubectl get pods -o wide
# in yaml
command: ['sleep', 'infinity']
kubectl apply -f pod-client.yaml
kubectl get pods
kubectl get -it redis bash
# inside of the pod
ps
cat /proc/1/cmdline
redis-cli
keys *
set hello world
exit
kubectl exec -it client bash
# need to know redis address
kubectl get pods -o wide
# read IP, 10.42.2.117
kubectl exec -it client bash
redis-cli
commad not fine
nc -v 10.40.2.117 6379
get hello
world
vi service-redis.yaml
kubectl apply -f service-redis.yaml
vi pod-redis.yaml
# add labels: app: redis
kubectl apply -f pod-redis-labels.yaml
kubectl exec -it client bash
nc -v redis 6379 # without ip address
redis.default.svc.cluster.local [10.43.253.180] 6379(?) open
get hello
world
kubectl delete all --all --grace-period
vi deployment-redis.yaml
kbuectl get po
kubectl get events
kubectl create -f deployment-redis.yaml
kubectl scale deployment redis --replicas 3
kubectl get po
kubectl scale deployment redis --replicas 1
vi deployments-redis.yaml
# upgrade from 5.0.3 to 5.0.4
# change the version to 5.0.4
kubectl apply -f deployment-redis.yaml
Workshop: Guestbook demo on github
- https://github.com/amiramm/guestbook-demo
 - workshop summary
- keploy k8s cluster on GCP
 - create new namespace
 - create redis master deployment
 - deploy a redis master
 - deploy redis slaves
 - deploy guestbook application fronetend and expose to internet

 - Guestbook application with redis
- PHP guestbook with redis


 - PHP guestbook with redis
 - https://console.cloud.google.com

gcloud beta container clusters get-credentials standard-cluster-1 --region us-west1 --project proven-reality-226706
# turn off tmux settings
# activate cloud shell
git clone https://github.com/amiramm/guestbook-demo
# create namespace
kubectl get namespaces
vi guestbook-demo/namespace.json
# metadata
labels: name: "amizne"
kubectl apply -f guestbook-demo/namespace.json
kubectl get namespaces --show-labels
kubectl config view
# need context and user
kubectl config current-context
kubectl config set-context amizne --namespace=amizne --cluster=gke_redisconf19-k8s-001_us-west1_standard-cluster-1
kubectl config use-context amizne
watch -n 5 kubectl get pods
kubectl apply -f guestbook-demo/redis-master-deployment.yaml
Operator
- customer resource definition

kind: CustomerResourceDefinition
spec:
  group: appr.redislab.com
- for redis enterprise customers
 - Custom Resource + Customer Controller = Operator
 - Stateful Set Controller
 - Redis Enterpirse Cluser (REC) Controller
- can upgrade Redis Enterprise


kubectl get crd
kubectl apply -f crd.yaml
kubectl get all
kubectl apply -f redis-enterprise-cluster.yaml
- What operator Gives You
- life cycle control
 - simple configuration/reconfiguration
 - simple deployment
 - k8s native solution
 - automates complex operations


0200..0330 Serving Deep Learning Models at Scale with RedisAI
- Deep Learning with Redis
 - Luca Antiga, [tensor]werk, CEO
- Orobix co-founder, PyTorch contributor, Co-author of Deep Learning with PyTouch

 - Agenda
- deep learning basics
 - RedisAI: architecture, api, operation
 - Hands-on: image recognition and text generation

 - Appsembler: virtual host

Deep learning basics
- The era of data-driving
- program whose behiviour is defined by data
 - new era for software development
 - needs to leverage on best practices of software engineering
 - from data scientists to developers

 - Deep learning
- deep neural networks approximate functions based on examples
 - Pervasive
 - Solves problems that looked very hard a few years back
 - Limit is the data, not the programmers(kinda)
 - Not AGI, but a tool with superpowers
 - image with ladies selling vegetables => Vision deep CNN => Laguage generating RNN => A group of people shopping at outdoor market, There are many vegetables at the fruit stand.

 - Deep learning frameworks
- Tensorflow, PyTouch, mxnet, CNTK, Chainer, DyNet, DL4J, Flux
 - once the model is trainined, run it on production
 - Production (ONUX, JIT, Tourchscript)

 - Deep Learning 101 - Tensors
- tensor = multi-dimentional array
 - scalar 0d
 - vector 1d
 - matrix 2d
 - tensor 3d..
 - the main data structure in deep learning
 - multidimensional arrays: arrays that can be indexed using more than one index
 - memory is still 1D
 - it’s just a matter of access and operator semantics

 - Deep Learning 101 - Models
- operation on tensors to produce other tensors
 - operations are layed out in a comutation graph
 - a graph is like a VM IR with an op-set limited to tensor ops
 - E.g.
- linear transformation(w*x + b)
 -
- non-linearity: gamma(w*x + b) * heaviliy nested


 - non-linearity: gamma(w*x + b) * heaviliy nested


 - Deep Learning 101 - Learning
- Optimizing weights

 - So you’ve got your model trained
- Now what?

 - Production strategies
- Python code behind: e.g. Flask
 - Execution service from cloud provider
 - Runtime
- tensorflow serving
 - clipper
 - nvidia tensorRT inference server
 - MNNet Model server

 - Bespoke solutions(C++, ..)
 - jupyter, flask, python, docker
 - Model server architecture
- inception V3 model file
 - model server
 - REST/RPC wht’as in this image -> panda(0.89)
 - https://medium.com/@vikati/the-rise-of-the-model-servers-9395522b6c58


 - Production requirements
- must fin the technology stack
 - not just about laugages, but about semantics, scalability, guarantees
 - run anywhere, any size
 - composable building blocks
 - must try to limit the amount of moving parts
 - and the amount of moving data
 - must make best use of resources

 - RedisAI
- a redis module providing
 - tensors as a data type
 - and depp learning model execution
 - on cpu and gpu
 - it turns redis into a full-fledged depp learning runtime
 - while still being redis
 - new data type: * tensor

 - ONNX is a standard format for neural network
 - ONNX-ML: just machine learning
 - TorchScript

def addsq(a, b): return (a + b)**2 - Archituecure
- tensor: framework-agnostic
 - queue + procesing theread
- backpressure
 - redis stays reponsive

 - models are kept hot in memory
 - client blocks

 - Where to get it
- https://redisai.io
 - https://github.com/RedisAI/RedisAI
 - go read license


$docker run -p 6379:6379 -it -rm redisai/redisai
or
git clone [email protected]:RedisAI/RedisAI.git
bash get_deps.sh
mkdir build && cd build
cmake -DDEPS_PATH=../deps/install .. && make
cd ..
redis-server --loadmodule bild/redisai.so
- git LFS support
 - installs cuda
 - set up some envs

bash get_deps.sh cpu # cpu only
LD_LIBRARY_PATH=`pwd`/deps/install/libs redis-server --loadmodule build/redisai.io
-
API: Tensor
- AI.TENSORSET
 - AI.TENSORGET

AI.TENSORSET foo FLOAT 2 2 VALUES 1 2 3 4 AI.TENSORSET foo FLOAT 2 2 BLOB < buffer.new AI.TENSORGET foo BLOB AI.TENSORGET foo VALUES AI.TENSORGET foo META -
API: Model
- AI.MODELSET

AI.MODELSET resnet18 TORCH GPU < foo.pt AI.MODELSET resnet18 TF CPU INPUTS in1 OUTPUTS linear4 < foot.pt-
to load TF graph, use Netron
 -
https://www.codeproject.com/Articles/1248963/Deep-Learning-using-Python-plus-Keras-Chapter-Re
 -
AI.MODELRUN

AI.MODELRUN resnet18- how to export models
- tensorflow(+keras) : freeze graph


 -
API: Script
- AI.SCRIPTSET
 - AI.SCRIPTRUN

AI.SCRIPTSET mysadd2 GPU < addtwo.txt AI.SCRIPTRUN myadd2 addtwo INPUTS foo OUTPUTS BARaddtwo.txt
def addtwo(a, b): return a + b -
Scripts?
- SCRIPT is a TorchScript interpreter
 - Python-like syntax for tensor ops
 - on CPU and GUP


Hands-on
- create two 3x3 tensors
 - create SCRIPT that performas element-wise multiply
 - set it
 - run it

# make mymul.txt
def mymul(a, b):
  return a*b
# run redis-cli
AI.TENSORSET foo FLOAT 2 2 VALUES 1 1 2 2
AI.TENSORGET foo VALUES
AI.TENSORGET foo BLOB
AI.TENSORSET bar FLOAT 3 3 VALUES 2 2 2 2 2 2 2 2 2
AI.SCRIPTSET baz CPU ""
# from outside to load script
redis-cli -x AI.SCRIPTSET baz CPU < mul.txt
# after loading
AI.SCRIPTRUN baz mymul INPUTS foo bar OUTPUTS jar
AI.TENSORGET jar values
- go to https://github.com/RedisAI/redisai-examples
 - image recognition
 - Hands-on
- will run two hands-on demo
 - image recognition (with thensorflow and pytourch)
 - text generation (with pytorch)

 - using nodejs ans the client and pre-train

wget https://s3.amazonaws.com/redisai/redisai-examples.tar.gz
tar -xvfz redisai-exampels.tar.gz
cd redisai-examples/js_client
npm install jimp ioredis
0340..0450 Streaming Architectures
- Redis Streams
- were introduced in redis v5
 - necessity is the mother of invention
 - are (yet another) redis data structure <- you can store data in it!
 - are a storage absraction for log-like data
 - can also provide communication between processes
 - are the most complex/robust data redis structure(to date)

 - What is a stream?
- append-only lis of entries called messages
 - messages are added to a stream by “producers”.
 - every message has an ID that uniquely identifies it, embeds a notion of time and is immutable.
 - order of the messages is imuutable
 - a messsage contains data is a hash-like (field-value pairs) structure
 - data is immutable, but messages can be deleted from the stream
 - messges can be read from the stream by id or by ranges


XACK
XADD
XCLAIM
XDEL
XGROUP
XINFO
XLEN
XPENDING
XRANGE
XREAD
XREADGROUP
XREVRANGE
XTRIM
Hands on
- sample code: https://github.com/itamarhaber/streamsworkshop

127.0.0.1:6379> keys *
(empty list or set)
127.0.0.1:6379> xadd mystream * foo bar
"1554159172959-0" # millisecret
127.0.0.1:6379> xadd mystream * foo bar
"1554159184276-0"
127.0.0.1:6379> 5 xadd s1 * foo bar  # if you add number in front, it runs that times
"1554159364534-0"
"1554159364535-0"
"1554159364583-0"
"1554159364583-1"  # same milliseconds, sequences
"1554159364583-2"  # same milliseconds, sequences
> 500 xadd mystream * foo bar
127.0.0.1:6379> xlen mystream
(integer) 507
127.0.0.1:6379> xtrim mystream maxlen ~ 123
(integer) 303
127.0.0.1:6379> xlen mystream
(integer) 204
streamsworkshop$ python producer_1.py
1554159899.914: Stream numbers has 0 messages and uses None bytes
1554159899.915: Produced the number 0 as message id 1554159899914-0
1554159900.917: Stream numbers has 1 messages and uses 581 bytes
1554159900.917: Produced the number 1 as message id 1554159900916-0
1554159901.919: Stream numbers has 2 messages and uses 592 bytes
redis-cli flushall
- code: producer_2.py

127.0.0.1:6379> XINFO STREAM numbers
 1) "length"
 2) (integer) 47
 3) "radix-tree-keys"
 4) (integer) 1
 5) "radix-tree-nodes"
 6) (integer) 2
 7) "groups"
 8) (integer) 0
 9) "last-generated-id"
10) "1554160089688-0"
11) "first-entry"
12) 1) "1554160043587-0"
    2) 1) "n"
       2) "0"
13) "last-entry"
14) 1) "1554160089688-0"
    2) 1) "n"
       2) "46"
127.0.0.1:6379> XRANGE numbers - + COUNT 5
1) 1) "1554160043587-0"
   2) 1) "n"
      2) "0"
2) 1) "1554160044589-0"
   2) 1) "n"
      2) "1"
3) 1) "1554160045591-0"
   2) 1) "n"
      2) "2"
4) 1) "1554160046593-0"
   2) 1) "n"
      2) "3"
5) 1) "1554160047595-0"
   2) 1) "n"
      2) "4"
127.0.0.1:6379> XRANGE numbers 1554160047595-0 + COUNT 5
1) 1) "1554160047595-0"
   2) 1) "n"
      2) "4"
2) 1) "1554160048598-0"
   2) 1) "n"
      2) "5"
3) 1) "1554160049600-0"
   2) 1) "n"
      2) "6"
4) 1) "1554160050602-0"
   2) 1) "n"
      2) "7"
5) 1) "1554160051604-0"
   2) 1) "n"
      2) "8"
- code: range_1.py

127.0.0.1:6379> XRANGE numbers 1554159977896-2 1554159977896-2
(empty list or set)
- code: range_sum.py

streamsworkshop$ python range_sum.py
The running sum of the Natural Numbers Stream is 9045 (added 135 new numbers)
streamsworkshop$ python range_sum.py
The running sum of the Natural Numbers Stream is 9045 (added 0 new numbers)
127.0.0.1:6379> hgetall numbers:range_sum
1) "last_id"
2) "1554160177886-1"
3) "n_sum"
4) "9045"
127.0.0.1:6379> XREAD STREAMS numbers 0
1) 1) "numbers"
   2)   1) 1) "1554160043587-0"
           2) 1) "n"
              2) "0"
        2) 1) "1554160044589-0"
           2) 1) "n"---
127.0.0.1:6379> XREAD COUNT 5 STREAMS numbers 1554160177486-0
1) 1) "numbers"
   2) 1) 1) "1554160177886-0"
         2) 1) "n"
            2) "134"
127.0.0.1:6379> XREAD BLOCK 100 STREAMS numbers $
(nil)
- code: blockingread_sum.py

127.0.0.1:6379> XGROUP CREATE numbers grp 0
OK
127.0.0.1:6379> XREADGROUP GROUP grp c1 STREAMS numbers 0
1) 1) "numbers"
   2) (empty list or set)
127.0.0.1:6379> XREADGROUP GROUP grp c1 COUNT 1 STREAMS numbers >
1) 1) "numbers"
   2) 1) 1) "1554160043587-0"
         2) 1) "n"
            2) "0"
127.0.0.1:6379> XINFO GROUPS numbers
1) 1) "name"
   2) "grp"
   3) "consumers"
   4) (integer) 2
   5) "pending"
   6) (integer) 2
   7) "last-delivered-id"
   8) "1554160044589-0"
127.0.0.1:6379> XINFO CONSUMERS numbers grp
1) 1) "name"
   2) "c1"
   3) "pending"
   4) (integer) 1
   5) "idle"
   6) (integer) 99060
2) 1) "name"
   2) "c2"
   3) "pending"
   4) (integer) 1
   5) "idle"
   6) (integer) 60502
127.0.0.1:6379> XACK numbers grp 1554161747918-0
(integer) 0
127.0.0.1:6379> XINFO CONSUMERS numbers grp
1) 1) "name"
   2) "c1"
   3) "pending"
   4) (integer) 1
   5) "idle"
   6) (integer) 63254
2) 1) "name"
   2) "c2"
   3) "pending"
   4) (integer) 1
   5) "idle"
   6) (integer) 176549
127.0.0.1:6379> XPENDING numbers grp
1) (integer) 195
2) "1554160043587-0"
3) "1554161864418-0"
4) 1) 1) "c1"
      2) "194"
   2) 1) "c2"
      2) "1"
127.0.0.1:6379> XPENDING numbers grp - + 10
 1) 1) "1554160043587-0"
    2) "c1"
    3) (integer) 194762
    4) (integer) 2
...
-
python consumer_group.py
 -
reference:

Action item:
- check the modules:
- https://redis.io/modules
 - RediSearch, RedisJSON, RedisAI
